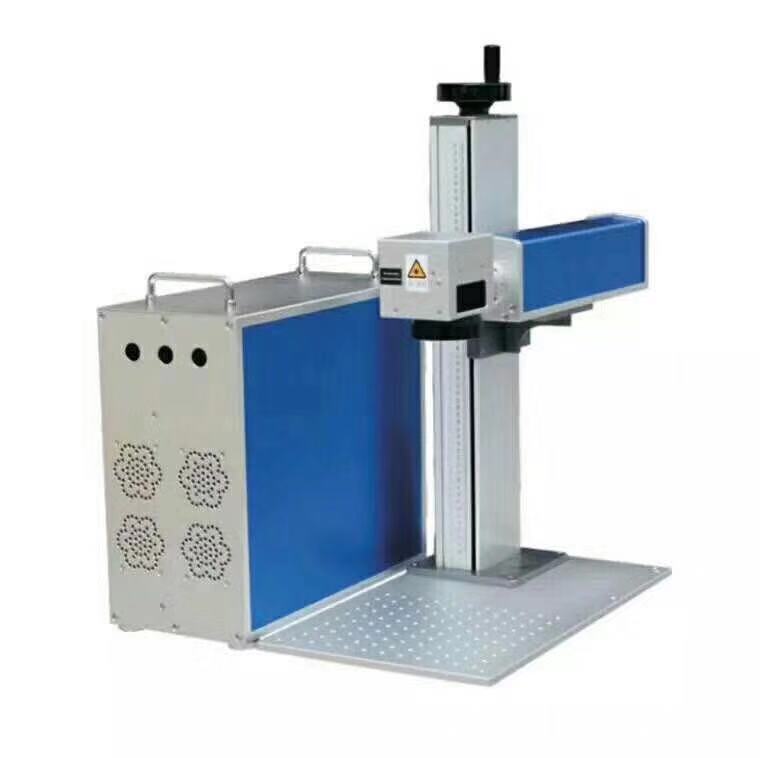

Mini laser marking machine
Main Description
* 100*100mm marking size
*China Raycus fiber laser source 20w 30w 50w
*10000 hours service time of laser source
*Beijing SINO galvo head
Application of Mini laser marking machine
Advantage
- Compact machine structure, and with independent work table, easy to carry, save production space.
- It is suitable for working both at home and outside;
- Multiple power laser light source, available for many industries;
- Fast speed, high efficiency, stable output power, high reliability;
- Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
- High electro-optic conversion efficiency, little energy couplingloss, less power consumption with just 0.5 KW/Hour;
Technical Parameter
| Model | WH-F20 Mini fiber laser marking machine |
| Laser type | Fiber laser |
| Laser power | 20w 30w 50w |
| Work size | 100*100 mm |
| Software | Beijing JCZ CAD |
| File format supported | AI BMP PLT DXF |
| Marking line width | 0.01 mm -0.1mm |
| Marking depth | 0.01-2 mm (depends on the materials) |
| Voltage | AC110/220v, 50hz/60hz |
| Cooling way | Air cooling |
| Warranty | 2 Years |
| Package size | 92*46*55cm |

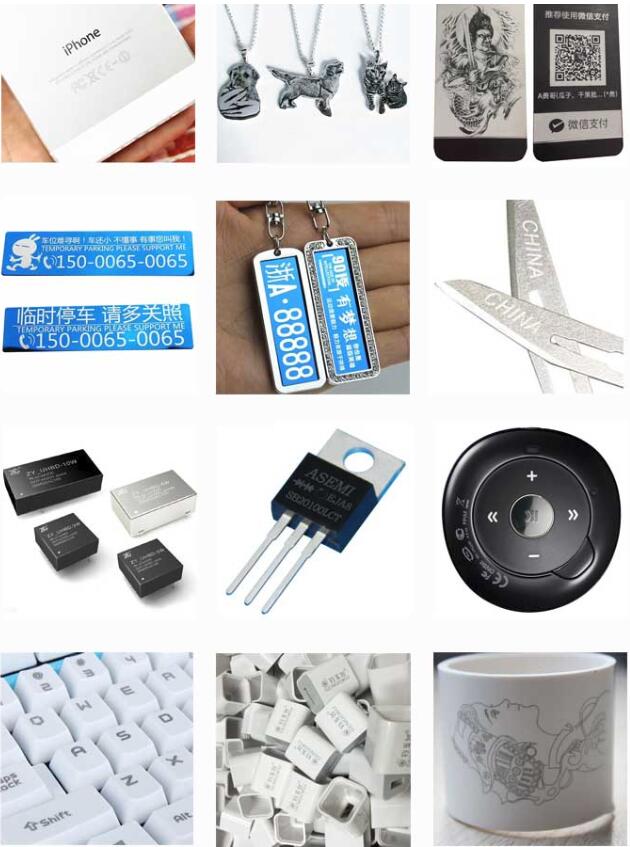

Sample Display
