Desktop fiber laser marker
Main Description
* 100*100mm 175*175mm 200*200mm marking size
*China Raycus fiber laser source 20w 30w 50w 100w
*10000 hours service time of laser source
*Beijing SINO galvo head
Applicable Materials Fiber Laser Marker
Metals ( Gold, silver, copper, alloy, aluminum,steel, stainless steel, name card ) and Non-metal ( Plastic: engineering plastic and hard plastic,etc. Used in electronic components integrated circuits, mobile communications,precision instruments, glasses watch and clocks, computer keyboard,accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
Advantage
1.High electro-optic conversion efficiency
2.Low power consumption, stability laser output
3.High quality beam, consumable free,small machine dimension
4.Smaller output laser beam,finer marking line.suitable high precision marking.
Product Parameter Of Fiber laser marking machine
| Product name | Laser Marking Machine |
| Laser Type | MOPA Laser source |
| Laser Power | 20W/30W /60w |
| Laser Wavelength | 1064nm |
| Modulation Frequency | 20kHz~200kHz |
| Marking Speed | 7000mm/s |
| Repeatable Accuracy | 0.001mm |
| Marking Area | 110mm*100mm |
| Marking Mode | Static |
| Min Line Width | 0.01mm |
| Min Letter | 0.2mm |
| Spot Diameter | 0.025mm |
| Cooling System | Air Cooling |
| Working Voltage | 110V/220V 50/60HZ |
| Unit Power | <0.5kw |

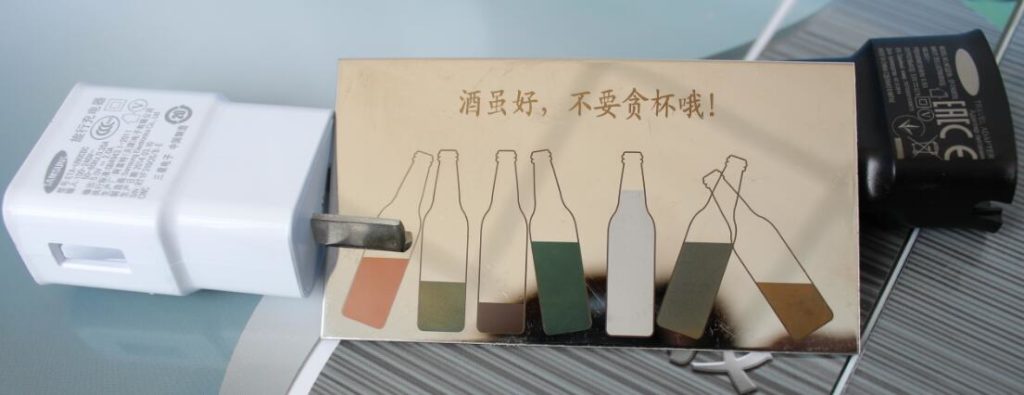

Sample Display Of Fiber laser marker
